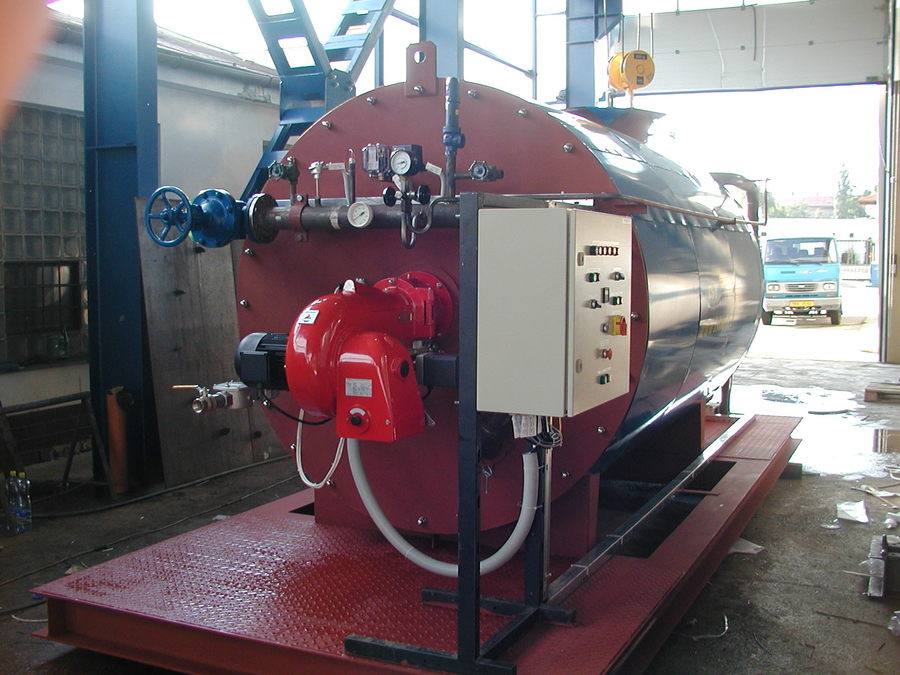

Thermo oil boiler VTK

Technical description:

The thermo-oil boiler has a horizontal design with forced oil flow. The combustion chamber with membrane peripheral walls has placed a burner in the front wall. The boiler tube system is self-supporting, the perfect tightness of the diaphragm design of the combustion chamber and the internal plating of the convection bundle enable overpressure combustion. The boiler rear lid allows easy access to all heating surfaces and easy cleaning. Insulation of the outer shell is made of mineral felt covered by an outer plating of aluminum sheet, the lining is only around the burners and the rear manhole. To ensure access to the bottom, the boiler is mounted on a support construction at the installation site. The boiler is provided with a final coating.

Certification of boiler construction and production is according to customer requirements according to ČSN, GOST, ASME.
The boilers comply with Government Regulation No. 352/2002 Coll., Laying down emission limits and other conditions for the operation of stationary sources of pollution and air protection.

Technical parameters and dimensions:

Other boilers outputs on request.

Download: Thermo oil boiler VTK.pdf
